To configure the DHCP server for forwarding, refer to the following menus:

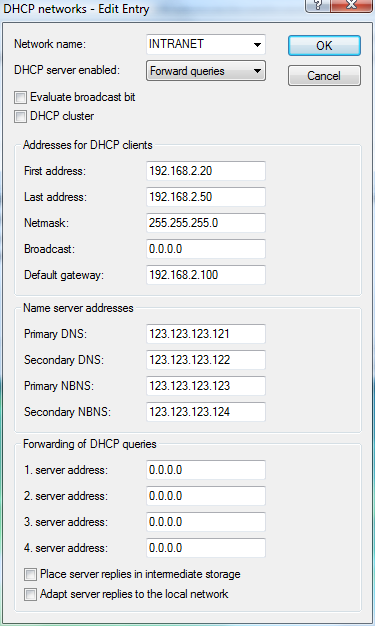

- LANconfig: TCP/IP / DHCP / DHCP networks
- WEBconfig: LCOS menu tree / Setup / DHCP / Network list
- 1st server address
This is where the IP address for the upstream DHCP server is entered
when the mode 'Relay requests' is selected.
Possible values:
- IP address or the broadcast address of the network in which the server is located. The broadcast address is the highest address in an IP network. All packets sent to this address are received by all hosts.
- 0.0.0.0
