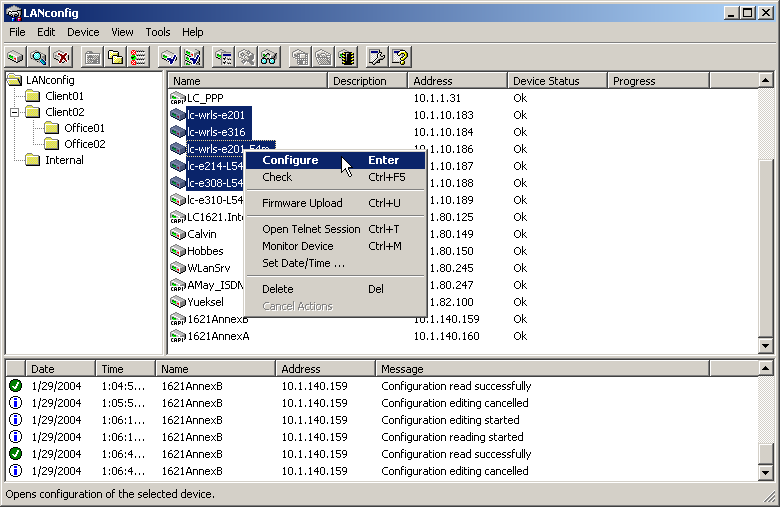

LANconfig facilitates the configuration of various devices within a project with a range of functions that can be run on several devices at once. If the list in LANconfig contains multiple devices, just click on the device of your choice with the right mouse key to open a context menu offering the following actions:
- Configure: Opens up the LANconfig configuration dialog for the selected device
- Check: Checks if the selected device can be contacted

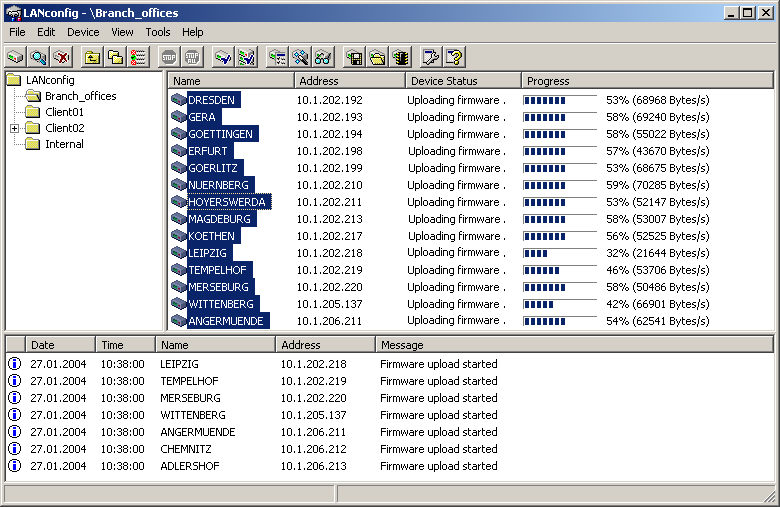

- Firmware upload: Uploads firmware simultaneously to all selected devices
- Apply Script: Applies a configuration script to all selected devices
- Open Telnet session: Opens up multiple DOS windows and sets up a Telnet connection to each device
- Monitor device: Starts LANmonitor for the surveillance of the selected devices
- Set date/time: Sets the same time on all selected devices.Note: When setting the time, please observe the functions of the LANCOM as NTP client and NTP server.
- Delete: Deletes the selected devices from the LANconfig list.
