The read-only access to a LANCOM device via SNMP—for example with LANmonitor--can be password protected. This uses the same user data as with access to LANconfig. Password protection of SNMP access means that the user data must be entered before information about the device status, etc. can be accessed over SNMP.

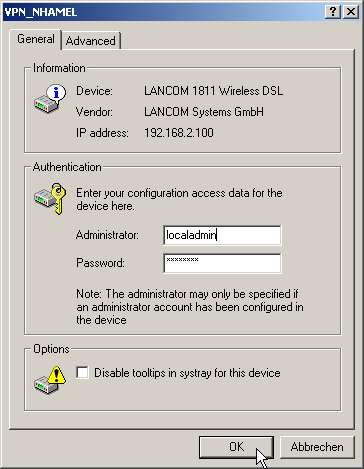

User information can be entered in LANmonitor separately for each device. To do this, click with the right-hand mouse key on the required device, select the Options point from the context menu and enter your user data.
Access rights in LANmonitor depend on the rights possessed by the user:
- A supervisor has full access to the information in LANmonitor and can execute actions such as closing a connection, among others.
- A local administrator also has full access to the information in LANmonitor and can execute actions such as closing a connection, among others.
- A user with read-only rights can view the information in LANmonitor but cannot take any actions such as closing a connection.
- A user without rights has no SNMP access to the device's information.

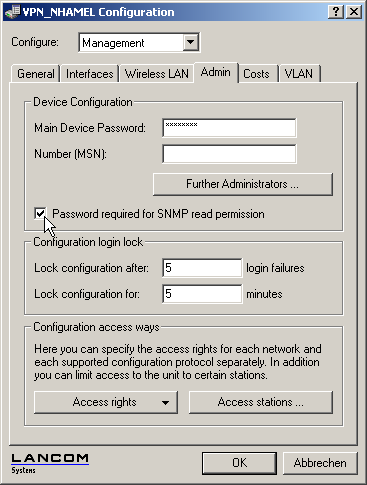

LANconfig: Management/ General
WEBconfig: LCOS menu tree / Setup / Config modul / Password-required-for-SNMP-read-access
