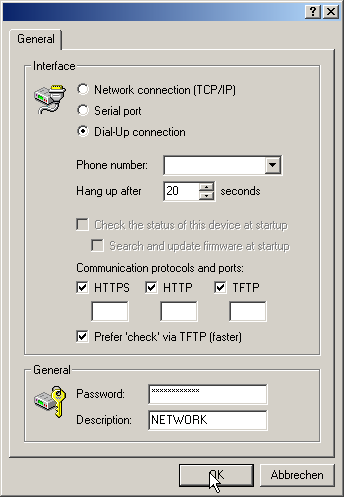

For configuring the specific communications settings, the properties dialog of a device is opened via the context menu (right-click on mouse):
- HTTPS, HTTP, TFPT
Select the communications protocols as described in the global settings:
In the fields under the protocols, the port to be used can be entered
using the following default values:
- HTTPS: 443
- HTTP: 80
- TFTP: 69
- Prefer checks via TFTP Preferred checking via TFTP as described in the global settings. For all specific communications settings, the global settings are considered to be superordinate. A protocol can therefore only be used for operating a device when it is also activated in the global settings.
