This table defines the port-related settings for IGMP snooping.
LANconfig: Interfaces / IGMP snooping / Port table
WEBconfig: LCOS menu tree / Setup / LAN bridge / IGMP snooping / Port settings
- Port
The port for which the settings apply.
Possible values:
- Selects a port from the list of those available in the device.
- N/A

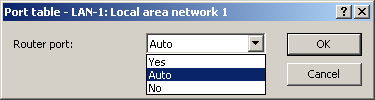

- Router port
This option defines the port's behavior.
Possible values:
- Yes: This port will always work as a router port, irrespective of IGMP queries or router messages received at this port.
- No: This port will never work as a router port, irrespective of IGMP queries or router messages received at this port.
- Auto: This port will work as a router port if IGMP queries or router messages are received. The port loses this status if no packets are received for the duration of "Robustness*Query-Interval+(Query-Response-Interval/2)".
- Auto
