You can set the time interval for averaging the value for the displayed CPU load.
WEBconfig: LCOS menu tree / Setup / Config
- CPU-load interval You can select the time interval for averaging the CPU load. The CPU
load displayed in LANmonitor, in the status area, in the display (if fitted), or by SNMP
tools is a value which is averaged over the time interval set here. The status area under

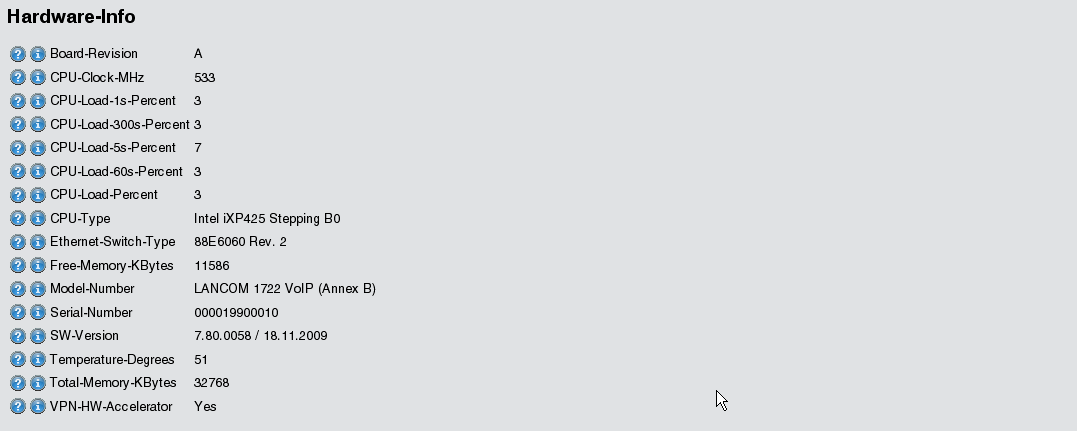

WEBconfig or CLI additionally display the CPU load values for all four of the optional
averaging periods.
Possible values:
- 1, 5, 60 or 300 seconds.
- 60 seconds.
Note: The default period of 60 seconds is specified by the HOST-RESOURCES-MIB, which is used by many SNMP tools to display CPU load in a tacho display. Please consider this specification when altering the CPU-load interval.
