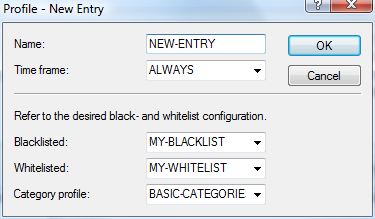

The settings for the profiles are to be found here:
LANconfig: Content-Filter / Profiles / Profiles
WEBconfig: LCOS menu tree / Setup / UTM / Content-Filter / Profiles / Profiles
- Name
The profile name that the firewall references must be specified here.
Possible values:
- Name of a profile
- Blank
- Timeframe
Select the timeframe for this category profile and, optionally, the
blacklist and the whitelist. The timeframes “ALWAYS” and “NEVER”
are predefined. You can configure other timeframes under:
LANconfig: Date/Time / General / Timeframe
WEBconfig: LCOS menu tree / Setup / Time /
Timeframe
One profile may have several lines with different timeframes.
Possible values:
- Always
- Never
- Name of a timeframe profile
- Blank
Note: If timeframes overlap when multiple entries are used for a content filter profile, all pages contained in one of the active entries will be blocked for that period of time. If a period remains undefined when several entries are used for a content filter profile, access to all websites is unchecked for this period. - Blacklist
Name of the blacklist profile that is to apply for this content filter
profile during the period in question. A new name can be entered, or
an existing name can be selected from the blacklist table.
Possible values:
- Name of a blacklist profile
- New name
- Blank
- Whitelist
Name of the whitelist profile that is to apply for this content filter
profile during the period in question. A new name can be entered, or
an existing name can be selected from the whitelist table.
Possible values:
- Name of a whitelist profile
- New name
- Blank
- Category-Profile
Name of the category profile that is to apply for this content filter
profile during the period in question. A new name can be entered, or
an existing name can be selected from the category table.
Possible values:
- Name of a category profile
- New name
- Blank
