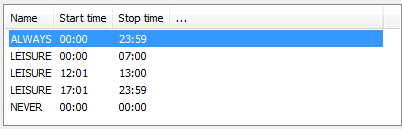

Timeframes are used to define the periods when the content-filter profiles are valid. One profile may have several lines with different timeframes. Different lines in a timeframe should complement each other, i.e. if you specify WORKTIME you will probably wish to specify a timeframe called FREETIME to cover the time outside of working hours.

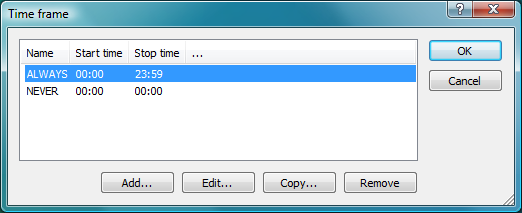

The timeframes “ALWAYS” and “NEVER” are predefined. You can configure other timeframes under:
LANconfig: Date/Time / General / Timeframe
WEBconfig: LCOS menu tree / Setup / Time / Timeframe
- Name
Enter the name of the timeframe for referencing from the content-filter
profile.
Possible values:
- Name of a timeframe
- Blank
- Start
Here you set the start time (time of day) when the selected profile
becomes valid.
Possible values:
- Maximum 5 characters, format HH:MM
- 00:00
- Stop
Here you set the stop time (time of day) when the selected profile ceases
to be valid.
Possible values:
- Maximum 5 characters, format HH:MM
- 23:59
- Weekdays
Here you select the weekday on which the timeframe is to be valid.
Possible values:
- Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
- Activated for Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday
