As of LCOS 9.00 you have the option of specifying the client-bridge mode and bandwidth limits for individual SSIDs.
Changes to stand-alone APs

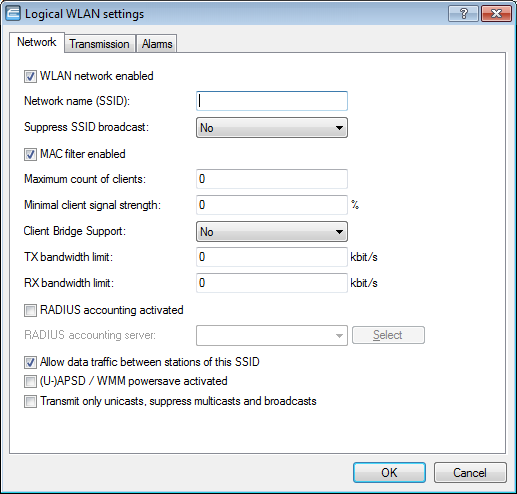

The following settings are made in LANconfig in
.- Client-bridge supportEnable this option for an access point if you have enabled the client-bridge support for a client station in WLAN client mode ().
Note: The client-bridge mode only operates between two LANCOM devices.
- TX bandwidth limitWith this setting, you define the overall bandwidth that is available for transmission within this SSID (limit in kbps). A value of 0 disables the limit.
- RX bandwidth limitWith this setting, you define the overall bandwidth that is available in the reception direction within this SSID (limit in kbps). A value of 0 disables the limit.
The settings of this name are thus removed from LANconfig under
an also from the following menu items in WEBconfig:
