If the email system of the LANCOM is activated, then you can use the comfortable notification by email. The device sends an email to the administrator as soon as the firewall executes the appropriate action:
FROM: LANCOM_Firewall@MyCompany.com TO: Administrator@MyCompany.com SUBJECT: packet filtered
Date: 9/24/2002 15:06:46
The packet below
Src: 10.0.0.37:4353 {cs2} Dst: 192.168.200.10:80 {ntserver} (TCP)
45 00 00 2c ed 50 40 00 80 06 7a a3 0a 00 00 25 | E..,.P@. ..z....% c0 a8 c8 0a 11 01 00 50 00 77 5e d4 00 00 00 00 | .......P .w^..... 60 02 20 00 74 b2 00 00 02 04 05 b4 | `. .t... ....
matched this filter rule: BLOCKHTTP and exceeded this limit: more than 0 packets transmitted or received on a connection
because of this the actions below were performed: drop block source address for 1 minutes send syslog message send SNMP trap send email to administrator
Sending the email from the LANCOM to the administrator only works if the right email address is entered.

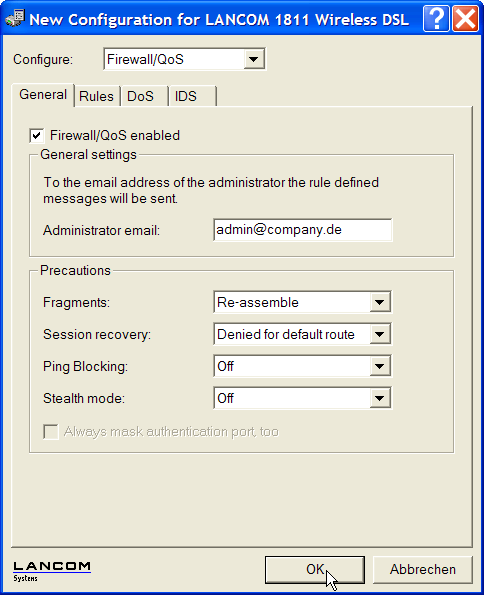

LANconfig: Firewall/QoS / General
WEBconfig: LCOS menu tree / Setup / IP Router / Firewall
For sending an email there needs to be set up an email account.

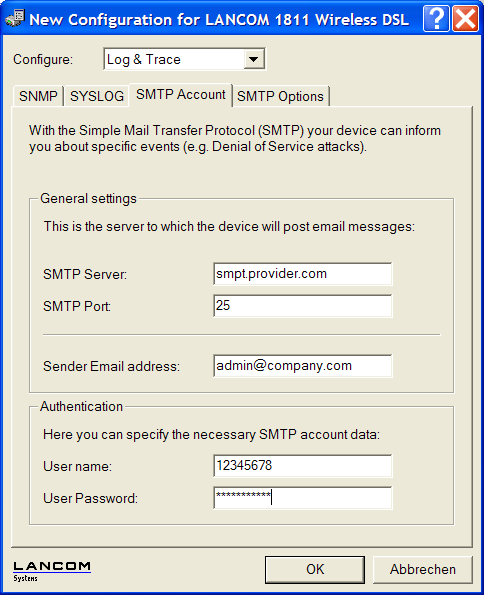

LANconfig: Log & Trace E SMTP Account
WEBconfig: LCOS menu tree / Setup / SMTP
