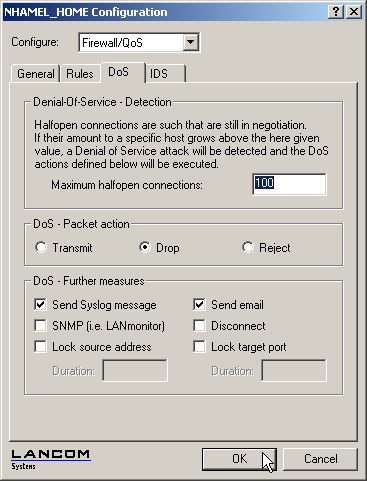

LANconfig: Firewall/QoS / DoS
WEBconfig: LCOS menu tree / Setup / IP-Router / Firewall
Note: In order to drastically reduce the susceptibility of the network
for DoS attacks in advance, packets from distant networks may be only
accepted, if either a connection has been initiated from the internal
network, or the incoming packets have been accepted by an explicit filter
entry (source: distant network, destination: local area network). This
measure already blocks a multitude of attacks.
For all permitted accesses explicitly connection state, source addresses and correctness of fragments are tracked in a LANCOM. This happens for incoming and for outgoing packets, since an attack could be started also from within the local area network.
This part is configured centrally in order not to open a gate for DoS attacks by incorrect configuration of the Firewall. Apart from specifying the maximum number of half-open connections, fragment action and possible notification mechanisms, also these more extensive possibilities of reaction exist:
- The connection will be cut off.
- The sender address will be blocked for an adjustable period of time.
- The destination port of the scan will be blocked for an adjustable period of time.
However, always active are the following protection mechanisms:
- Address examination (against IP Spoofing)
- Blocking of broadcasts into local area network (against Smurf and Co).
