When using a RADIUS server for the authentication of WLAN clients, the RADIUS server uses the MAC address to check client authorizations.

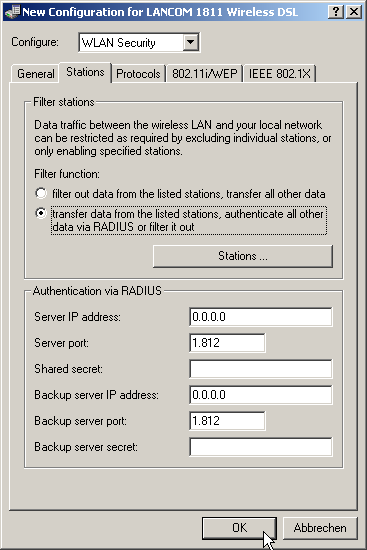

LANconfig: WLAN Security / Stations
WEBconfig: LCOS menu tree / Setup / WLAN / RADIUS access check
Note: To use the RADIUS functionality for WLAN clients, the option "Transfer
data from the listed stations, authenticate all others via RADIUS or
filter them out“ must be selected for the "Filter stations" parameter.
- Server IP address Specify here the IP address of your RADIUS server from which users are managed centrally.
- Server port [default: 1.812] Specify here the port used for communication to your RADIUS server.
- Key (shared secret) Specify here the key to be used for coding data. The key must also be configured on the RADIUS server.
- Backup server IP address [default: 1.812] Specify here the IP address of your backup RADIUS server from which users are managed centrally.
- Backup server port Specify here the port used for communication to your backup RADIUS server.
- Backup key
Specify here the key to be used for coding data. The key must also be
configured on the backup RADIUS server.
Note: The generic values for retry and timeout must also be configured.
