When configuring a public spot (enable using software option for the LANCOM access points), user registration data can be forwarded to one or more RADIUS servers. These are configured in the provider list. The registration data individual RADIUS servers require from the clients is not important to the LANCOM access point since this data is passed on transparently to the RADIUS server.

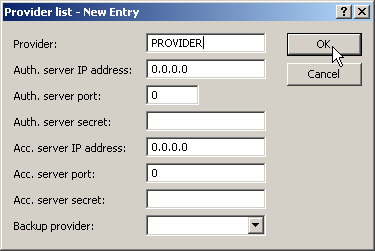

LANconfig: Public Spot / Public Spot Users/ Provider list
WEBconfig: LCOS menu tree / Setup / WLAN / RADIUS accounting
- Provider Name of the provider for whom the RADIUS server is defined.
- Auth. server IP address The IP address of the RADIUS server for this provider.
- Auth. server port The port over which the LANCOM access point can communicate with the RADIUS server for this provider.
- Auth. server secret Key (shared secret) for access to the RADIUS server of the provider. The key must also be configured on the appropriate RADIUS server.
- Acc. Server IP address IP address of the Accounting server for accesses to the public spot.
- Acc. server port The port over which the LANCOM access point can communicate with the accounting server.
- Acc server secret Key (shared secret) for access to the Accounting server. The key must also be configured on the Accounting server.
- Backup provider
The name of a different provider can be selected as the backup from
the current table. Using these types of entries, backup chains linking
several RADIUS servers can be easily configured.
Note: The generic values for retry and timeout must also be configured.
