In the network table are those virtual LANs defined, in which the LANCOM should participate.

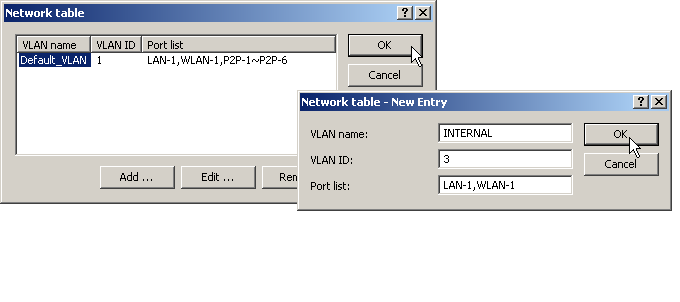

LANconfig: Interfaces / VLAN / VLAN table
WEBconfig: LCOS menu tree / Setup / VLAN / network table
- Name: The VLAN name serves only as a description during configuration. This name is used at no other place.
- VLAN ID: This number marks the VLAN unambiguously. Possible values range from 1 to 4094.
- Port list: All LANCOM interfaces belonging to the VLAN are entered into this list. Given a device with a LAN interface and a WLAN port, e.g. ports “LAN-1” and “WLAN-1” can be entered. In case of port ranges, the individual ports must be separated by a tilde: “P2P-1~P2P-4”.
Note: The first SSID of the first WLAN modul is named WLAN-1, the other SSIDs
are WLAN-1-2 up to WLAN-1-8. If the device has two WLAN moduls the SSIDs
are WLAN-2, WLAN-2-2 up to WLAN-2-8.
