Depending on the model, different numbers of SIP users can be created. You cannot create more than the maximum number of users permitted; similarly, duplicate names or called numbers are not permitted.
Note: The domain that is used by the SIP subscriber is usually configured
in the terminal equipment itself.

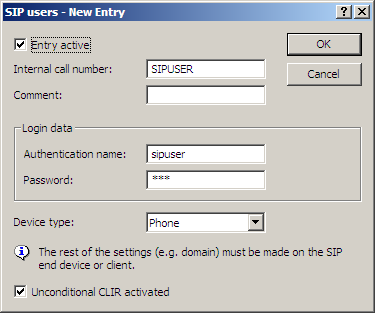

LANconfig: VoiP Call Manager / Users / SIP users
WEBconfig: LCOS menu tree / Setup / Voice Call Manager / Users / SIP users
The following parameters can be used to define a SIP user:
- Number/Name Telephone number of the SIP telephone or name of the user (SIP URI).
- Auth-Name Name for authentication at the SIP proxy, and also to any upstream SIP PBX when the user's domain is the same as the domain of a SIP PBX line. This name is required if registration is mandatory (e.g. when logging in to an upstream SIP PBX or when "Force local authentication" is set for local users).
- Secret Password for authentication to the SIP proxy, and also to any upstream SIP PBX, when the user's domain is the same as the domain of a SIP PBX line. It is possible for users to log in to the local SIP proxy without authentication ("Force local authentication" is deactivated for SIP users) and where applicable to an upstream SIP PBX using a shared password ("Standard password" on the SIP PBX line).
- Device type Type of device connected.
- CLIR Switches the transmission of the calling-line identifier on/off.
- Active Activates or deactivates the entry.
- Comment Comment on this entry
