ISDN mapping assigns external ISDN telephone numbers (MSN or DDI) to the telephone numbers that are used internally.

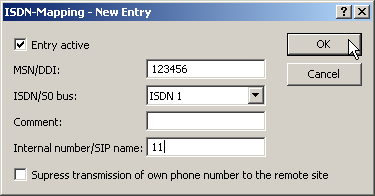

LANconfig: VoIP Call Manager / Lines / ISDN mapping
WEBconfig: LCOS menu tree / Setup / Voice Call Manager / Lines / ISDN / Mapping
- MSN/DDIExternal telephone number of the connection in the ISDN network.
For incoming calls that are directed to this number, the corresponding
internal telephone number is entered as the destination number. For outgoing
calls, this number is transmitted as the caller's number, unless this
has been suppressed.
- MSN: Number of the telephone connection
- DDI (Direct Dialing in): Telephone extension number if the connection is configured as a point-to-point line.
Note: By using the # character as a placeholder, entire groups of call numbers, e.g. when using extension numbers, can be addressed via a single entry. - ISDN/S0 bus, IfcISDN interface(s) used for connecting terminal devices to the LANCOM Wireless Router. These line have to be configured as ISDN-NT.
- Telephone number/SIP name, Number/NameInternal telephone number of the ISDN telephone or name of the user
(SIP URL).
For incoming calls, this is the SIP name or internal telephone number
of the telephone to which the call from this interface is switched with
the corresponding MSN/DDI. For outgoing calls, the SIP name is replaced
by the MSN/DDI of the corresponding entry.
Note: By using the # character as a placeholder, entire groups of call numbers, e.g. when using extension numbers, can be addressed via a single entry.
- Hide your telephone number from the person called, CLIRThe display of your telephone number is suppressed so the person called cannot see it.
- Entry active, ActiveExternal telephone number is active / not active.
- CommentComment on the external telephone number.
