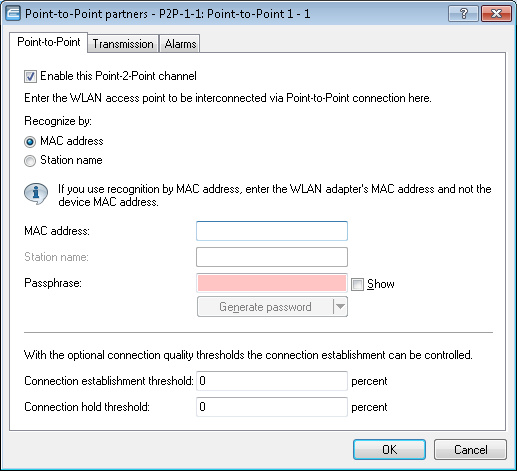

Up to 16 point-to-point connections can be activated for each WLAN module. In LANconfig you find these settings under
![](pictures/config_wlan_physical_interfaces_p2p_connection.png)
Proceed as follows to set up a point-to-point link:
- Select the option Enable this point-2-point channel.
- Select whether the P2P peer is to be identified by its MAC address or its Station name.
- The corresponding text box is activated. Enter the MAC address or station name.
Important: If you work with detection by MAC address, enter the MAC address of the
WLAN module here and not that of the device itself.
![](pictures/config_wlan_physical_interfaces_p2p_connection_alarm.png)

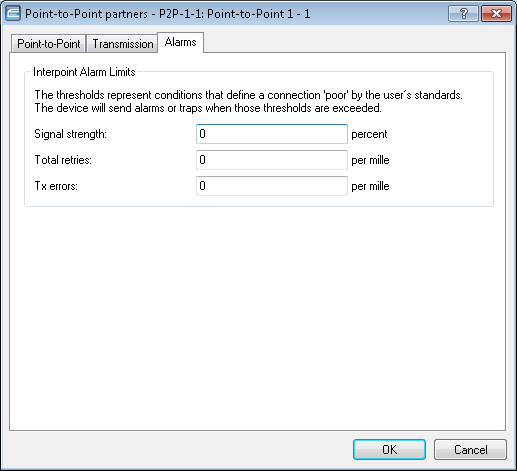

On the Alarm tab,you can set threshold values for signal strength, total repetitions and Tx errors for the point-to-point connection. If the value exceeds or falls below this value, the access point sets off alarms or traps.
Conclude your entries by clicking on OK.
