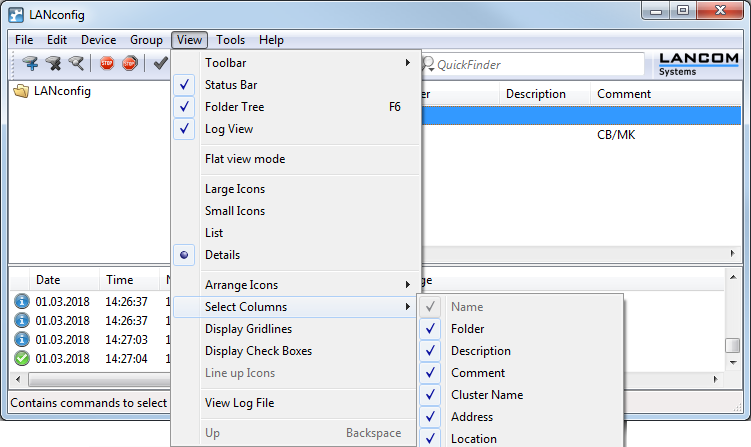

As a help for large-scale projects, LANconfig provides a better overview and quicker orientation with its columns featuring device-related details that can be shown or hidden according to your needs. Choose the columns to be displayed from
. The menu item allows you to sort the items as you prefer.Note: Sort the view by clicking with the left mouse button in the appropriate column heading. Each new click reverses the sorting.
![](pictures/LANconfig_betterOverview_columns.png)
The following details can be displayed in the various columns:
- Name
- Folder
- Description
- Comment
- Address
- Location
- Device status
- Progress
- Device type
- Product code
- Hardware release
- Serial number
- MAC address
- Firmware-Version
- Firmsafe
- 1st Image version
- 2nd Image version
With Select all or Hide all you can show or hide all columns with just one click.
Note: The column Comment contains the information in comment field 1 for the device.
![](pictures/LANconfig_show_comment01.png)
